Interior & Exterior Framing
Interior & Exterior Framing
ft
Up to 40ft
in
Up to 11in
All
All
All
All
(in) o.c.
Punched
5 psf
All

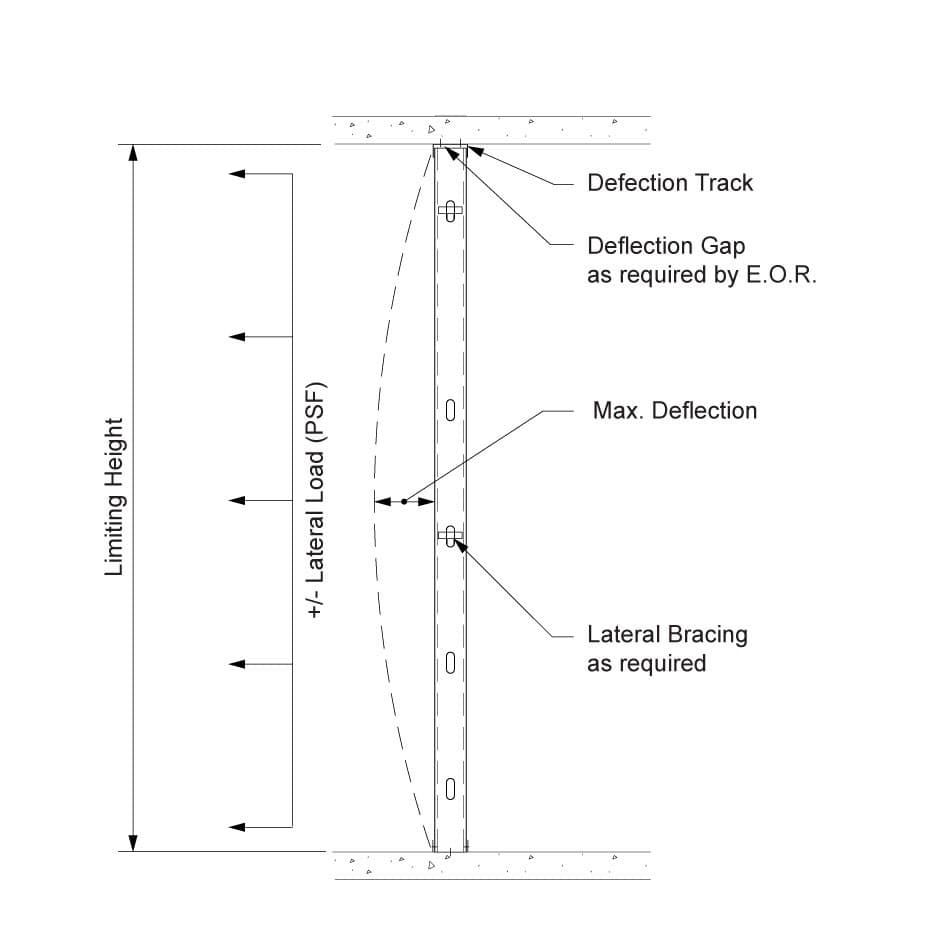

Heights are limited to 60' due to shipping, installation and design considerations. If higher spans are required, please contact Engineering Services to evaluate your design.
S162 (1-5/8" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 13'-3" | 10'-6" | 9'-2" |
| 16 | 12'-0" | 9'-7" | 8'-4" |
| 24 | 10'-6" | 8'-4" | 7'-3" |
S162 (1-5/8" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 14'-4" | 11'-5" | 9'-11" |
| 16 | 13'-1" | 10'-4" | 9'-1" |
| 24 | 11'-5" | 9'-1" | 7'-11" |
S162 (1-5/8" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 15'-4" | 12'-2" | 10'-8" |
| 16 | 13'-11" | 11'-1" | 9'-8" |
| 24 | 12'-2" | 9'-8" | 8'-5" |
S137 (1-3/8" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 17'-6" | 13'-10" | 12'-1" |
| 16 | 15'-10" | 12'-7" | 11'-0" |
| 24 | 13'-10" | 11'-0" | 9'-7" |
S137 (1-3/8" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 19'-0" | 15'-1" | 13'-2" |
| 16 | 17'-3" | 13'-8" | 11'-11" |
| 24 | 15'-1" | 11'-11" | 10'-5" |
S137 (1-3/8" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 20'-3" | 16'-1" | 14'-1" |
| 16 | 18'-5" | 14'-8" | 12'-9" |
| 24 | 16'-1" | 12'-9" | 11'-2" |
S137 (1-3/8" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 21'-8" | 17'-2" | 15'-0" |
| 16 | 19'-8" | 15'-7" | 13'-8" |
| 24 | 17'-2" | 13'-8" | 11'-11" |
S137 (1-3/8" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 23'-8" | 18'-10" | 16'-5" |
| 16 | 21'-6" | 17'-1" | 14'-11" |
| 24 | 18'-10" | 14'-11" | 13'-0" |
S162 (1-5/8" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 18'-4" | 14'-7" | 12'-9" |
| 16 | 16'-8" | 13'-3" | 11'-7" |
| 24 | 14'-7" | 11'-7" | 10'-1" |
S162 (1-5/8" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 19'-11" | 15'-10" | 13'-10" |
| 16 | 18'-1" | 14'-4" | 12'-7" |
| 24 | 15'-10" | 12'-7" | 11'-0" |
S162 (1-5/8" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 21'-4" | 16'-11" | 14'-9" |
| 16 | 19'-4" | 15'-5" | 13'-5" |
| 24 | 16'-11" | 13'-5" | 11'-9" |
S162 (1-5/8" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 22'-9" | 18'-1" | 15'-9" |
| 16 | 20'-8" | 16'-5" | 14'-4" |
| 24 | 18'-1" | 14'-4" | 12'-6" |
S162 (1-5/8" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 25'-0" | 19'-10" | 17'-4" |
| 16 | 22'-9" | 18'-0" | 15'-9" |
| 24 | 19'-10" | 15'-9" | 13'-9" |
S200 (2" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 19'-4" | 15'-4" | 13'-5" |
| 16 | 17'-7" | 13'-11" | 12'-2" |
| 24 | 15'-4" | 12'-2" | 10'-8" |
S200 (2" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 21'-1" | 16'-9" | 14'-8" |
| 16 | 19'-2" | 15'-3" | 13'-4" |
| 24 | 16'-9" | 13'-4" | 11'-7" |
S200 (2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 22'-7" | 17'-11" | 15'-8" |
| 16 | 20'-6" | 16'-4" | 14'-3" |
| 24 | 17'-11" | 14'-3" | 12'-5" |
S200 (2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 24'-2" | 19'-2" | 16'-9" |
| 16 | 21'-11" | 17'-5" | 15'-3" |
| 24 | 19'-2" | 15'-3" | 13'-4" |
S200 (2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 26'-7" | 21'-1" | 18'-5" |
| 16 | 24'-2" | 19'-2" | 16'-9" |
| 24 | 21'-1" | 16'-9" | 14'-8" |
S250 (2-1/2" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
This section does not meet the requirements of AISI North American Specifications. Increase the thickness or contact ClarkDietrich Technical Services @ 888-437-3244 for design solutions.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 20'-3" | 16'-1" | 14'-0" |
| 16 | 18'-4" | 14'-7" | 12'-9" |
| 24 | 16'-1" | 12'-9" | 11'-2" |
S250 (2-1/2" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 22'-4" | 17'-9" | 15'-6" |
| 16 | 20'-4" | 16'-1" | 14'-1" |
| 24 | 17'-9" | 14'-1" | 12'-4" |
S250 (2-1/2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 23'-11" | 19'-0" | 16'-7" |
| 16 | 21'-9" | 17'-3" | 15'-1" |
| 24 | 19'-0" | 15'-1" | 13'-2" |
S250 (2-1/2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 25'-8" | 20'-4" | 17'-9" |
| 16 | 23'-4" | 18'-6" | 16'-2" |
| 24 | 20'-4" | 16'-2" | 14'-1" |
S250 (2-1/2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 28'-4" | 22'-6" | 19'-8" |
| 16 | 25'-9" | 20'-5" | 17'-10" |
| 24 | 22'-6" | 17'-10" | 15'-7" |
S162 (1-5/8" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 23'-9" | 18'-10" | 16'-5" |
| 16 | 21'-7" | 17'-1" | 14'-11" |
| 24 | 18'-3" | 14'-11" | 13'-1" |
S162 (1-5/8" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 25'-10" | 20'-6" | 17'-11" |
| 16 | 23'-5" | 18'-7" | 16'-3" |
| 24 | 20'-6" | 16'-3" | 14'-2" |
S162 (1-5/8" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 27'-8" | 21'-11" | 19'-2" |
| 16 | 25'-1" | 19'-11" | 17'-5" |
| 24 | 21'-11" | 17'-5" | 15'-2" |
S162 (1-5/8" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 29'-7" | 23'-6" | 20'-6" |
| 16 | 26'-10" | 21'-4" | 18'-7" |
| 24 | 23'-6" | 18'-7" | 16'-3" |
S162 (1-5/8" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 32'-7" | 25'-10" | 22'-7" |
| 16 | 29'-7" | 23'-6" | 20'-6" |
| 24 | 25'-10" | 20'-6" | 17'-11" |
S200 (2" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 24'-11" | 19'-10" | 17'-4" |
| 16 | 22'-8" | 18'-0" | 15'-9" |
| 24 | 19'-4" | 15'-9" | 13'-9" |
S200 (2" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 27'-3" | 21'-8" | 18'-11" |
| 16 | 24'-9" | 19'-8" | 17'-2" |
| 24 | 21'-8" | 17'-2" | 15'-0" |
S200 (2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 29'-3" | 23'-2" | 20'-3" |
| 16 | 26'-6" | 21'-1" | 18'-5" |
| 24 | 23'-2" | 18'-5" | 16'-1" |
S200 (2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 31'-3" | 24'-10" | 21'-8" |
| 16 | 28'-5" | 22'-7" | 19'-8" |
| 24 | 24'-10" | 19'-8" | 17'-3" |
S200 (2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 34'-7" | 27'-5" | 24'-0" |
| 16 | 31'-5" | 24'-11" | 21'-9" |
| 24 | 27'-5" | 21'-9" | 19'-0" |
S250 (2-1/2" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
This section does not meet the requirements of AISI North American Specifications. Increase the thickness or contact ClarkDietrich Technical Services @ 888-437-3244 for design solutions.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 26'-0" | 20'-8" | 18'-0" |
| 16 | 23'-7" | 18'-9" | 16'-4" |
| 24 | 20'-0" | 16'-4" | 14'-4" |
S250 (2-1/2" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 28'-9" | 22'-10" | 19'-11" |
| 16 | 26'-1" | 20'-9" | 18'-1" |
| 24 | 22'-10" | 18'-1" | 15'-10" |
S250 (2-1/2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 30'-9" | 24'-5" | 21'-4" |
| 16 | 27'-11" | 22'-2" | 19'-4" |
| 24 | 24'-5" | 19'-4" | 16'-11" |
S250 (2-1/2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 33'-1" | 26'-3" | 22'-11" |
| 16 | 30'-0" | 23'-10" | 20'-10" |
| 24 | 26'-3" | 20'-10" | 18'-2" |
S250 (2-1/2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 36'-7" | 29'-1" | 25'-5" |
| 16 | 33'-3" | 26'-5" | 23'-1" |
| 24 | 29'-1" | 23'-1" | 20'-2" |
S137 (1-3/8" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 23'-3" | 18'-5" | 16'-1" |
| 16 | 21'-1" | 16'-9" | 14'-8" |
| 24 | 17'-3" | 14'-8" | 12'-10" |
S137 (1-3/8" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 25'-3" | 20'-1" | 17'-6" |
| 16 | 23'-0" | 18'-3" | 15'-11" |
| 24 | 20'-1" | 15'-11" | 13'-11" |
S137 (1-3/8" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 27'-1" | 21'-6" | 18'-9" |
| 16 | 24'-7" | 19'-6" | 17'-1" |
| 24 | 21'-6" | 17'-1" | 14'-11" |
S137 (1-3/8" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 28'-11" | 22'-11" | 20'-1" |
| 16 | 26'-3" | 20'-10" | 18'-3" |
| 24 | 22'-11" | 18'-3" | 15'-11" |
S137 (1-3/8" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 31'-10" | 25'-3" | 22'-1" |
| 16 | 28'-11" | 22'-11" | 20'-1" |
| 24 | 25'-3" | 20'-1" | 17'-6" |
S137 (1-3/8" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 33'-5" | 26'-6" | 23'-2" |
| 16 | 30'-4" | 24'-1" | 21'-1" |
| 24 | 26'-6" | 21'-1" | 18'-5" |
S162 (1-5/8" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 24'-4" | 19'-4" | 16'-11" |
| 16 | 22'-2" | 17'-7" | 15'-4" |
| 24 | 18'-8" | 15'-4" | 13'-5" |
S162 (1-5/8" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 26'-6" | 21'-0" | 18'-5" |
| 16 | 24'-1" | 19'-1" | 16'-8" |
| 24 | 21'-0" | 16'-8" | 14'-7" |
S162 (1-5/8" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 28'-5" | 22'-6" | 19'-8" |
| 16 | 25'-10" | 20'-6" | 17'-11" |
| 24 | 22'-6" | 17'-11" | 15'-7" |
S162 (1-5/8" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 30'-5" | 24'-1" | 21'-1" |
| 16 | 27'-7" | 21'-11" | 19'-2" |
| 24 | 24'-1" | 19'-2" | 16'-9" |
S162 (1-5/8" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 33'-6" | 26'-7" | 23'-3" |
| 16 | 30'-5" | 24'-2" | 21'-1" |
| 24 | 26'-7" | 21'-1" | 18'-5" |
S162 (1-5/8" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 35'-3" | 28'-0" | 24'-5" |
| 16 | 32'-1" | 25'-5" | 22'-3" |
| 24 | 28'-0" | 22'-3" | 19'-5" |
S200 (2" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 25'-8" | 20'-4" | 17'-9" |
| 16 | 23'-3" | 18'-6" | 16'-2" |
| 24 | 19'-8" | 16'-2" | 14'-1" |
S200 (2" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 28'-0" | 22'-3" | 19'-5" |
| 16 | 25'-5" | 20'-2" | 17'-8" |
| 24 | 22'-3" | 17'-8" | 15'-5" |
S200 (2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 30'-0" | 23'-10" | 20'-10" |
| 16 | 27'-3" | 21'-8" | 18'-11" |
| 24 | 23'-10" | 18'-11" | 16'-6" |
S200 (2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 32'-2" | 25'-6" | 22'-3" |
| 16 | 29'-2" | 23'-2" | 20'-3" |
| 24 | 25'-6" | 20'-3" | 17'-8" |
S200 (2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 35'-6" | 28'-3" | 24'-8" |
| 16 | 32'-3" | 25'-8" | 22'-5" |
| 24 | 28'-3" | 22'-5" | 19'-7" |
S200 (2" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 37'-6" | 29'-9" | 26'-0" |
| 16 | 34'-1" | 27'-0" | 23'-7" |
| 24 | 29'-9" | 23'-7" | 20'-8" |
S250 (2-1/2" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
This section does not meet the requirements of AISI North American Specifications. Increase the thickness or contact ClarkDietrich Technical Services @ 888-437-3244 for design solutions.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 26'-8" | 21'-2" | 18'-6" |
| 16 | 24'-3" | 19'-3" | 16'-10" |
| 24 | 20'-5" | 16'-10" | 14'-8" |
S250 (2-1/2" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 29'-6" | 23'-5" | 20'-6" |
| 16 | 26'-10" | 21'-3" | 18'-7" |
| 24 | 23'-5" | 18'-7" | 16'-3" |
S250 (2-1/2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 31'-7" | 25'-1" | 21'-11" |
| 16 | 28'-8" | 22'-9" | 19'-11" |
| 24 | 25'-1" | 19'-11" | 17'-4" |
S250 (2-1/2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 33'-11" | 26'-11" | 23'-6" |
| 16 | 30'-10" | 24'-6" | 21'-5" |
| 24 | 26'-11" | 21'-5" | 18'-8" |
S250 (2-1/2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 37'-7" | 29'-10" | 26'-1" |
| 16 | 34'-2" | 27'-1" | 23'-8" |
| 24 | 29'-10" | 23'-8" | 20'-8" |
S250 (2-1/2" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 39'-9" | 31'-6" | 27'-6" |
| 16 | 36'-1" | 28'-8" | 25'-0" |
| 24 | 31'-6" | 25'-0" | 21'-10" |
S300 (3" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
This section does not meet the requirements of AISI North American Specifications. Increase the thickness or contact ClarkDietrich Technical Services @ 888-437-3244 for design solutions.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 27'-6" | 21'-10" | 19'-1" |
| 16 | 25'-0" | 19'-10" | 17'-4" |
| 24 | 20'-9" | 17'-4" | 15'-2" |
S300 (3" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
This section does not meet the requirements of AISI North American Specifications. Increase the thickness or contact ClarkDietrich Technical Services @ 888-437-3244 for design solutions.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 30'-7" | 24'-3" | 21'-2" |
| 16 | 27'-9" | 22'-0" | 19'-3" |
| 24 | 24'-3" | 19'-3" | 16'-10" |
S300 (3" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 32'-5" | 25'-8" | 22'-5" |
| 16 | 29'-5" | 23'-4" | 20'-5" |
| 24 | 25'-8" | 20'-5" | 17'-10" |
S300 (3" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 35'-4" | 28'-0" | 24'-6" |
| 16 | 32'-1" | 25'-6" | 22'-3" |
| 24 | 28'-0" | 22'-3" | 19'-5" |
S300 (3" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 39'-4" | 31'-2" | 27'-3" |
| 16 | 35'-9" | 28'-4" | 24'-9" |
| 24 | 31'-2" | 24'-9" | 21'-8" |
S300 (3" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 41'-7" | 33'-0" | 28'-10" |
| 16 | 37'-10" | 30'-0" | 26'-3" |
| 24 | 33'-0" | 26'-3" | 22'-11" |
S137 (1-3/8" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 25'-1" | 19'-11" | 17'-5" |
| 16 | 22'-5" | 18'-1" | 15'-10" |
| 24 | 18'-3" | 15'-10" | 13'-10" |
S137 (1-3/8" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 27'-4" | 21'-8" | 18'-11" |
| 16 | 24'-10" | 19'-8" | 17'-2" |
| 24 | 21'-8" | 17'-2" | 15'-0" |
S137 (1-3/8" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 29'-3" | 23'-2" | 20'-3" |
| 16 | 26'-7" | 21'-1" | 18'-5" |
| 24 | 23'-2" | 18'-5" | 16'-1" |
S137 (1-3/8" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 31'-3" | 24'-10" | 21'-8" |
| 16 | 28'-5" | 22'-7" | 19'-8" |
| 24 | 24'-10" | 19'-8" | 17'-2" |
S137 (1-3/8" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 34'-5" | 27'-4" | 23'-11" |
| 16 | 31'-3" | 24'-10" | 21'-8" |
| 24 | 27'-4" | 21'-8" | 18'-11" |
S162 (1-5/8" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 26'-3" | 20'-10" | 18'-3" |
| 16 | 23'-11" | 18'-11" | 16'-7" |
| 24 | 19'-9" | 16'-7" | 14'-6" |
S162 (1-5/8" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 28'-7" | 22'-8" | 19'-10" |
| 16 | 26'-0" | 20'-7" | 18'-0" |
| 24 | 22'-8" | 18'-0" | 15'-9" |
S162 (1-5/8" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 30'-8" | 24'-4" | 21'-3" |
| 16 | 27'-10" | 22'-1" | 19'-4" |
| 24 | 24'-4" | 19'-4" | 16'-10" |
S162 (1-5/8" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 32'-10" | 26'-0" | 22'-9" |
| 16 | 29'-10" | 23'-8" | 20'-8" |
| 24 | 26'-0" | 20'-8" | 18'-1" |
S162 (1-5/8" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 36'-3" | 28'-9" | 25'-1" |
| 16 | 32'-11" | 26'-1" | 22'-10" |
| 24 | 28'-9" | 22'-10" | 19'-11" |
S200 (2" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 27'-8" | 21'-11" | 19'-2" |
| 16 | 25'-1" | 19'-11" | 17'-5" |
| 24 | 20'-10" | 17'-5" | 15'-2" |
S200 (2" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 30'-2" | 23'-11" | 20'-11" |
| 16 | 27'-5" | 21'-9" | 19'-0" |
| 24 | 23'-11" | 19'-0" | 16'-7" |
S200 (2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 32'-4" | 25'-8" | 22'-5" |
| 16 | 29'-5" | 23'-4" | 20'-5" |
| 24 | 25'-8" | 20'-5" | 17'-10" |
S200 (2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 34'-8" | 27'-6" | 24'-0" |
| 16 | 31'-6" | 25'-0" | 21'-10" |
| 24 | 27'-6" | 21'-10" | 19'-1" |
S200 (2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 38'-5" | 30'-6" | 26'-7" |
| 16 | 34'-10" | 27'-8" | 24'-2" |
| 24 | 30'-6" | 24'-2" | 21'-1" |
S250 (2-1/2" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
This section does not meet the requirements of AISI North American Specifications. Increase the thickness or contact ClarkDietrich Technical Services @ 888-437-3244 for design solutions.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 28'-9" | 22'-10" | 19'-11" |
| 16 | 26'-1" | 20'-9" | 18'-1" |
| 24 | 21'-6" | 18'-1" | 15'-10" |
S250 (2-1/2" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 31'-9" | 25'-3" | 22'-0" |
| 16 | 28'-10" | 22'-11" | 20'-0" |
| 24 | 25'-3" | 20'-0" | 17'-6" |
S250 (2-1/2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 34'-0" | 27'-0" | 23'-7" |
| 16 | 30'-10" | 24'-6" | 21'-5" |
| 24 | 27'-0" | 21'-5" | 18'-8" |
S250 (2-1/2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 36'-7" | 29'-0" | 25'-4" |
| 16 | 33'-3" | 26'-4" | 23'-0" |
| 24 | 29'-0" | 23'-0" | 20'-1" |
S250 (2-1/2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 40'-7" | 32'-2" | 28'-1" |
| 16 | 36'-10" | 29'-3" | 25'-7" |
| 24 | 32'-2" | 25'-7" | 22'-4" |
S300 (3" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
This section does not meet the requirements of AISI North American Specifications. Increase the thickness or contact ClarkDietrich Technical Services @ 888-437-3244 for design solutions.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 29'-7" | 23'-6" | 20'-6" |
| 16 | 26'-11" | 21'-4" | 18'-8" |
| 24 | 22'-0" | 18'-8" | 16'-4" |
S300 (3" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
This section does not meet the requirements of AISI North American Specifications. Increase the thickness or contact ClarkDietrich Technical Services @ 888-437-3244 for design solutions.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 32'-10" | 26'-1" | 22'-10" |
| 16 | 29'-10" | 23'-8" | 20'-8" |
| 24 | 26'-0" | 20'-8" | 18'-1" |
S300 (3" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 34'-10" | 27'-8" | 24'-2" |
| 16 | 31'-8" | 25'-1" | 21'-11" |
| 24 | 27'-8" | 21'-11" | 19'-2" |
S300 (3" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 38'-0" | 30'-2" | 26'-4" |
| 16 | 34'-6" | 27'-5" | 23'-11" |
| 24 | 30'-2" | 23'-11" | 20'-11" |
S300 (3" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 42'-4" | 33'-7" | 29'-4" |
| 16 | 38'-6" | 30'-6" | 26'-8" |
| 24 | 33'-7" | 26'-8" | 23'-4" |
S162 (1-5/8" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 33'-4" | 26'-9" | 23'-4" |
| 16 | 28'-10" | 24'-4" | 21'-3" |
| 24 | 23'-7" | 21'-3" | 18'-6" |
S162 (1-5/8" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 36'-8" | 29'-1" | 25'-5" |
| 16 | 33'-4" | 26'-5" | 23'-1" |
| 24 | 28'-1" | 23'-1" | 20'-2" |
S162 (1-5/8" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 39'-4" | 31'-3" | 27'-3" |
| 16 | 35'-9" | 28'-5" | 24'-9" |
| 24 | 31'-3" | 24'-9" | 21'-8" |
S162 (1-5/8" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 42'-2" | 33'-6" | 29'-3" |
| 16 | 38'-4" | 30'-5" | 26'-7" |
| 24 | 33'-6" | 26'-7" | 23'-3" |
S162 (1-5/8" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 46'-9" | 37'-1" | 32'-5" |
| 16 | 42'-5" | 33'-8" | 29'-5" |
| 24 | 37'-1" | 29'-5" | 25'-8" |
S200 (2" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 35'-4" | 28'-0" | 24'-6" |
| 16 | 30'-10" | 25'-5" | 22'-3" |
| 24 | 25'-2" | 22'-3" | 19'-5" |
S200 (2" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 38'-7" | 30'-7" | 26'-9" |
| 16 | 35'-1" | 27'-10" | 24'-4" |
| 24 | 30'-1" | 24'-4" | 21'-3" |
S200 (2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 41'-5" | 32'-10" | 28'-8" |
| 16 | 37'-7" | 29'-10" | 26'-1" |
| 24 | 32'-10" | 26'-1" | 22'-9" |
S200 (2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 44'-5" | 35'-3" | 30'-10" |
| 16 | 40'-4" | 32'-0" | 28'-0" |
| 24 | 35'-3" | 28'-0" | 24'-5" |
S200 (2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 49'-3" | 39'-1" | 34'-2" |
| 16 | 44'-9" | 35'-6" | 31'-1" |
| 24 | 39'-1" | 31'-1" | 27'-1" |
S250 (2-1/2" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
This section does not meet the requirements of AISI North American Specifications. Increase the thickness or contact ClarkDietrich Technical Services @ 888-437-3244 for design solutions.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 36'-6" | 29'-1" | 25'-4" |
| 16 | 31'-7" | 26'-5" | 23'-1" |
| 24 | 25'-10" | 23'-1" | 20'-2" |
S250 (2-1/2" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 40'-5" | 32'-1" | 28'-1" |
| 16 | 36'-9" | 29'-2" | 25'-6" |
| 24 | 30'-11" | 25'-6" | 22'-3" |
S250 (2-1/2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 43'-3" | 34'-4" | 30'-0" |
| 16 | 39'-3" | 31'-2" | 27'-3" |
| 24 | 34'-4" | 27'-3" | 23'-10" |
S250 (2-1/2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 46'-7" | 37'-0" | 32'-4" |
| 16 | 42'-4" | 33'-7" | 29'-4" |
| 24 | 37'-0" | 29'-4" | 25'-8" |
S250 (2-1/2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 51'-10" | 41'-2" | 35'-11" |
| 16 | 47'-1" | 37'-4" | 32'-8" |
| 24 | 41'-2" | 32'-8" | 28'-6" |
S137 (1-3/8" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 32'-3" | 27'-3" | 23'-10" |
| 16 | 27'-11" | 24'-9" | 21'-8" |
| 24 | 22'-10" | 21'-8" | 18'-11" |
S137 (1-3/8" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 37'-8" | 29'-11" | 26'-2" |
| 16 | 33'-7" | 27'-2" | 23'-9" |
| 24 | 27'-5" | 23'-9" | 20'-9" |
S137 (1-3/8" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 40'-5" | 32'-1" | 28'-0" |
| 16 | 36'-9" | 29'-2" | 25'-6" |
| 24 | 32'-1" | 25'-6" | 22'-3" |
S137 (1-3/8" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 43'-4" | 34'-4" | 30'-0" |
| 16 | 39'-4" | 31'-3" | 27'-3" |
| 24 | 34'-4" | 27'-3" | 23'-10" |
S137 (1-3/8" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 47'-11" | 38'-0" | 33'-2" |
| 16 | 43'-6" | 34'-6" | 30'-2" |
| 24 | 38'-0" | 30'-2" | 26'-4" |
S137 (1-3/8" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 50'-6" | 40'-1" | 35'-0" |
| 16 | 45'-11" | 36'-5" | 31'-10" |
| 24 | 40'-1" | 31'-10" | 27'-10" |
S162 (1-5/8" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 34'-11" | 28'-8" | 25'-0" |
| 16 | 30'-3" | 26'-0" | 22'-9" |
| 24 | 24'-8" | 22'-9" | 19'-10" |
S162 (1-5/8" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 39'-4" | 31'-2" | 27'-3" |
| 16 | 35'-9" | 28'-4" | 24'-9" |
| 24 | 29'-6" | 24'-9" | 21'-8" |
S162 (1-5/8" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 42'-2" | 33'-6" | 29'-3" |
| 16 | 38'-4" | 30'-5" | 26'-7" |
| 24 | 33'-6" | 26'-7" | 23'-3" |
S162 (1-5/8" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 45'-3" | 35'-11" | 31'-4" |
| 16 | 41'-1" | 32'-7" | 28'-6" |
| 24 | 35'-11" | 28'-6" | 24'-11" |
S162 (1-5/8" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 50'-1" | 39'-9" | 34'-9" |
| 16 | 45'-6" | 36'-2" | 31'-7" |
| 24 | 39'-9" | 31'-7" | 27'-7" |
S162 (1-5/8" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 52'-11" | 42'-0" | 36'-8" |
| 16 | 48'-1" | 38'-2" | 33'-4" |
| 24 | 42'-0" | 33'-4" | 29'-2" |
S200 (2" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 37'-4" | 30'-0" | 26'-2" |
| 16 | 32'-4" | 27'-3" | 23'-10" |
| 24 | 26'-5" | 23'-10" | 20'-10" |
S200 (2" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 41'-3" | 32'-9" | 28'-7" |
| 16 | 37'-6" | 29'-9" | 26'-0" |
| 24 | 31'-7" | 26'-0" | 22'-9" |
S200 (2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 44'-4" | 35'-2" | 30'-9" |
| 16 | 40'-3" | 32'-0" | 27'-11" |
| 24 | 35'-2" | 27'-11" | 24'-5" |
S200 (2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 47'-7" | 37'-9" | 33'-0" |
| 16 | 43'-2" | 34'-4" | 29'-11" |
| 24 | 37'-9" | 29'-11" | 26'-2" |
S200 (2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 52'-10" | 41'-11" | 36'-7" |
| 16 | 48'-0" | 38'-1" | 33'-3" |
| 24 | 41'-11" | 33'-3" | 29'-1" |
S200 (2" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 55'-10" | 44'-4" | 38'-9" |
| 16 | 50'-9" | 40'-3" | 35'-2" |
| 24 | 44'-4" | 35'-2" | 30'-9" |
S250 (2-1/2" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
This section does not meet the requirements of AISI North American Specifications. Increase the thickness or contact ClarkDietrich Technical Services @ 888-437-3244 for design solutions.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 38'-3" | 31'-1" | 27'-2" |
| 16 | 33'-1" | 28'-3" | 24'-8" |
| 24 | 27'-1" | 24'-8" | 21'-7" |
S250 (2-1/2" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 43'-3" | 34'-4" | 30'-0" |
| 16 | 39'-3" | 31'-2" | 27'-3" |
| 24 | 32'-5" | 27'-3" | 23'-10" |
S250 (2-1/2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 46'-3" | 36'-8" | 32'-1" |
| 16 | 42'-0" | 33'-4" | 29'-1" |
| 24 | 36'-8" | 29'-1" | 25'-5" |
S250 (2-1/2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 49'-10" | 39'-7" | 34'-7" |
| 16 | 45'-3" | 35'-11" | 31'-5" |
| 24 | 39'-7" | 31'-5" | 27'-5" |
S250 (2-1/2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 55'-5" | 44'-0" | 38'-5" |
| 16 | 50'-4" | 40'-0" | 34'-11" |
| 24 | 44'-0" | 34'-11" | 30'-6" |
S250 (2-1/2" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 58'-8" | 46'-7" | 40'-8" |
| 16 | 53'-4" | 42'-4" | 37'-0" |
| 24 | 46'-7" | 37'-0" | 32'-4" |
S300 (3" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
This section does not meet the requirements of AISI North American Specifications. Increase the thickness or contact ClarkDietrich Technical Services @ 888-437-3244 for design solutions.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 38'-10" | 32'-0" | 27'-11" |
| 16 | 33'-8" | 29'-1" | 25'-5" |
| 24 | 27'-6" | 25'-5" | 22'-2" |
S300 (3" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
This section does not meet the requirements of AISI North American Specifications. Increase the thickness or contact ClarkDietrich Technical Services @ 888-437-3244 for design solutions.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 44'-6" | 35'-4" | 30'-10" |
| 16 | 40'-5" | 32'-1" | 28'-1" |
| 24 | 33'-0" | 28'-1" | 24'-6" |
S300 (3" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 47'-3" | 37'-6" | 32'-9" |
| 16 | 42'-11" | 34'-1" | 29'-9" |
| 24 | 37'-6" | 29'-9" | 26'-0" |
S300 (3" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 51'-7" | 40'-11" | 35'-9" |
| 16 | 46'-10" | 37'-2" | 32'-6" |
| 24 | 40'-11" | 32'-6" | 28'-4" |
S300 (3" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 57'-7" | 45'-8" | 39'-11" |
| 16 | 52'-4" | 41'-6" | 36'-3" |
| 24 | 45'-8" | 36'-3" | 31'-8" |
S300 (3" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 48'-6" | 42'-5" |
| 16 | 55'-7" | 44'-1" | 38'-6" |
| 24 | 48'-6" | 38'-6" | 33'-8" |
S350 (3-1/2" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
This section does not meet the requirements of AISI North American Specifications. Increase the thickness or contact ClarkDietrich Technical Services @ 888-437-3244 for design solutions.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 41'-8" | 33'-1" | 28'-11" |
| 16 | 36'-5" | 30'-1" | 26'-3" |
| 24 | 29'-9" e | 26'-3" | 22'-11" |
S350 (3-1/2" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
This section does not meet the requirements of AISI North American Specifications. Increase the thickness or contact ClarkDietrich Technical Services @ 888-437-3244 for design solutions.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 46'-3" | 36'-9" | 32'-1" |
| 16 | 42'-0" | 33'-4" | 29'-2" |
| 24 | 36'-9" | 29'-2" | 25'-6" |
S350 (3-1/2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 49'-10" | 39'-7" | 34'-7" |
| 16 | 45'-3" | 35'-11" | 31'-5" |
| 24 | 39'-7" | 31'-5" | 27'-5" |
S350 (3-1/2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 54'-6" | 43'-3" | 37'-9" |
| 16 | 49'-6" | 39'-3" | 34'-4" |
| 24 | 43'-3" | 34'-4" | 30'-0" |
S350 (3-1/2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 48'-4" | 42'-3" |
| 16 | 55'-4" | 43'-11" | 38'-5" |
| 24 | 48'-4" | 38'-5" | 33'-6" |
S350 (3-1/2" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 51'-4" | 44'-10" |
| 16 | 58'-9" | 46'-7" | 40'-9" |
| 24 | 51'-4" | 40'-9" | 35'-7" |
S162 (1-5/8" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 38'-6" | 32'-10" | 28'-8" |
| 16 | 33'-4" | 29'-10" | 26'-1" |
| 24 | 27'-3" | 26'-1" | 22'-9" |
S162 (1-5/8" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 45'-6" | 36'-1" | 31'-6" |
| 16 | 40'-0" | 32'-9" | 28'-8" |
| 24 | 32'-8" | 28'-8" | 25'-0" |
S162 (1-5/8" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 48'-11" | 38'-10" | 33'-11" |
| 16 | 44'-5" | 35'-3" | 30'-10" |
| 24 | 38'-10" | 30'-10" | 26'-11" |
S162 (1-5/8" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 52'-8" | 41'-10" | 36'-6" |
| 16 | 47'-10" | 38'-0" | 33'-2" |
| 24 | 41'-10" | 33'-2" | 29'-0" |
S162 (1-5/8" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 58'-5" | 46'-5" | 40'-6" |
| 16 | 53'-1" | 42'-2" | 36'-10" |
| 24 | 46'-5" | 36'-10" | 32'-2" |
S200 (2" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 41'-4" | 34'-10" | 30'-6" |
| 16 | 35'-9" | 31'-8" | 27'-8" |
| 24 | 29'-2" e | 27'-8" | 24'-2" |
S200 (2" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 47'-11" | 38'-0" | 33'-3" |
| 16 | 42'-11" | 34'-7" | 30'-2" |
| 24 | 35'-0" | 30'-2" | 26'-4" |
S200 (2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 51'-5" | 40'-10" | 35'-8" |
| 16 | 46'-9" | 37'-1" | 32'-5" |
| 24 | 40'-10" | 32'-5" | 28'-4" |
S200 (2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 55'-3" | 43'-10" | 38'-4" |
| 16 | 50'-2" | 39'-10" | 34'-10" |
| 24 | 43'-10" | 34'-10" | 30'-5" |
S200 (2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 48'-9" | 42'-7" |
| 16 | 55'-10" | 44'-3" | 38'-8" |
| 24 | 48'-9" | 38'-8" | 33'-10" |
S250 (2-1/2" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 42'-3" | 36'-1" | 31'-6" |
| 16 | 36'-7" | 32'-9" | 28'-8" |
| 24 | 29'-11" e | 28'-8" e | 25'-0" |
S250 (2-1/2" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 50'-0" | 39'-9" | 34'-8" |
| 16 | 44'-0" | 36'-1" | 31'-6" |
| 24 | 35'-11" | 31'-6" | 27'-6" |
S250 (2-1/2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 53'-6" | 42'-5" | 37'-1" |
| 16 | 48'-7" | 38'-7" | 33'-8" |
| 24 | 42'-5" | 33'-8" | 29'-5" |
S250 (2-1/2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 57'-9" | 45'-10" | 40'-0" |
| 16 | 52'-5" | 41'-8" | 36'-4" |
| 24 | 45'-10" | 36'-4" | 31'-9" |
S250 (2-1/2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 51'-0" | 44'-7" |
| 16 | 58'-5" | 46'-4" | 40'-6" |
| 24 | 51'-0" | 40'-6" | 35'-5" |
S137 (1-3/8" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 37'-1" | 34'-0" | 29'-8" |
| 16 | 32'-1" | 30'-11" | 27'-0" |
| 24 | 26'-2" | 26'-2" | 23'-7" |
S137 (1-3/8" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 44'-10" | 37'-5" | 32'-8" |
| 16 | 38'-10" | 34'-0" | 29'-9" |
| 24 | 31'-9" | 29'-9" | 25'-11" |
S137 (1-3/8" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 50'-9" | 40'-3" | 35'-2" |
| 16 | 46'-1" | 36'-7" | 31'-11" |
| 24 | 40'-3" | 31'-11" | 27'-11" |
S137 (1-3/8" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 54'-10" | 43'-6" | 38'-0" |
| 16 | 49'-10" | 39'-6" | 34'-6" |
| 24 | 43'-6" | 34'-6" | 30'-2" |
S137 (1-3/8" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 48'-4" | 42'-2" |
| 16 | 55'-4" | 43'-11" | 38'-4" |
| 24 | 48'-4" | 38'-4" | 33'-6" |
S137 (1-3/8" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 51'-1" | 44'-7" |
| 16 | 58'-5" | 46'-5" | 40'-6" |
| 24 | 51'-1" | 40'-6" | 35'-5" |
S162 (1-5/8" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 40'-4" | 35'-5" | 30'-11" |
| 16 | 34'-11" | 32'-2" | 28'-1" |
| 24 | 28'-6" e | 28'-1" e | 24'-7" |
S162 (1-5/8" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 48'-7" | 38'-11" | 34'-0" |
| 16 | 42'-1" | 35'-4" | 30'-11" |
| 24 | 34'-4" | 30'-11" | 27'-0" |
S162 (1-5/8" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 52'-9" | 41'-10" | 36'-7" |
| 16 | 47'-11" | 38'-1" | 33'-3" |
| 24 | 41'-10" | 33'-3" | 29'-0" |
S162 (1-5/8" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 57'-0" | 45'-3" | 39'-6" |
| 16 | 51'-10" | 41'-1" | 35'-11" |
| 24 | 45'-3" | 35'-11" | 31'-5" |
S162 (1-5/8" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 50'-4" | 43'-11" |
| 16 | 57'-7" | 45'-9" | 39'-11" |
| 24 | 50'-4" | 39'-11" | 34'-11" |
S162 (1-5/8" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 53'-3" | 46'-6" |
| 16 | 60'-0" * | 48'-4" | 42'-3" |
| 24 | 53'-3" | 42'-3" | 36'-11" |
S200 (2" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 43'-5" | 37'-9" | 33'-0" |
| 16 | 37'-7" | 34'-3" | 29'-11" |
| 24 | 30'-9" e | 29'-11" e | 26'-2" |
S200 (2" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 51'-10" | 41'-1" | 35'-11" |
| 16 | 45'-2" | 37'-4" | 32'-8" |
| 24 | 36'-11" | 32'-8" | 28'-6" |
S200 (2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 55'-8" | 44'-2" | 38'-7" |
| 16 | 50'-7" | 40'-2" | 35'-1" |
| 24 | 44'-2" | 35'-1" | 30'-8" |
S200 (2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 59'-9" | 47'-5" | 41'-5" |
| 16 | 54'-4" | 43'-1" | 37'-8" |
| 24 | 47'-5" | 37'-8" | 32'-11" |
S200 (2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 52'-9" | 46'-1" |
| 16 | 60'-0" * | 47'-11" | 41'-11" |
| 24 | 52'-9" | 41'-11" | 36'-7" |
S200 (2" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 55'-11" | 48'-10" |
| 16 | 60'-0" * | 50'-9" | 44'-4" |
| 24 | 55'-11" | 44'-4" | 38'-9" |
S250 (2-1/2" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 44'-6" | 39'-0" | 34'-1" |
| 16 | 38'-6" | 35'-5" | 31'-0" |
| 24 | 31'-5" e | 31'-0" e | 27'-1" |
S250 (2-1/2" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 53'-6" | 42'-11" | 37'-6" |
| 16 | 46'-4" | 39'-0" | 34'-0" |
| 24 | 37'-10" | 34'-0" | 29'-9" |
S250 (2-1/2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 57'-10" | 45'-11" | 40'-1" |
| 16 | 52'-7" | 41'-8" | 36'-5" |
| 24 | 45'-11" | 36'-5" | 31'-10" |
S250 (2-1/2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 49'-6" | 43'-3" |
| 16 | 56'-8" | 44'-11" | 39'-3" |
| 24 | 49'-6" | 39'-3" | 34'-4" |
S250 (2-1/2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 55'-2" | 48'-2" |
| 16 | 60'-0" * | 50'-1" | 43'-9" |
| 24 | 55'-2" | 43'-9" | 38'-3" |
S250 (2-1/2" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 58'-6" | 51'-1" |
| 16 | 60'-0" * | 53'-1" | 46'-5" |
| 24 | 58'-6" | 46'-5" | 40'-6" |
S300 (3" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 45'-2" | 40'-1" | 35'-0" |
| 16 | 39'-1" | 36'-5" | 31'-9" |
| 24 | 31'-11" e | 31'-9" e | 27'-9" e |
S300 (3" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
This section does not meet the requirements of AISI North American Specifications. Increase the thickness or contact ClarkDietrich Technical Services @ 888-437-3244 for design solutions.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 54'-4" | 44'-2" | 38'-7" |
| 16 | 47'-1" | 40'-1" | 35'-0" |
| 24 | 38'-5" | 35'-0" | 30'-7" |
S300 (3" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 59'-1" | 46'-11" | 41'-0" |
| 16 | 53'-8" | 42'-7" | 37'-3" |
| 24 | 46'-11" | 37'-3" | 32'-6" |
S300 (3" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 50'-11" | 44'-6" |
| 16 | 58'-4" | 46'-3" | 40'-5" |
| 24 | 50'-11" | 40'-5" | 35'-4" |
S300 (3" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 57'-1" | 49'-10" |
| 16 | 60'-0" * | 51'-10" | 45'-3" |
| 24 | 57'-1" | 45'-3" | 39'-7" |
S300 (3" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 53'-0" |
| 16 | 60'-0" * | 55'-1" | 48'-2" |
| 24 | 60'-0" * | 48'-2" | 42'-1" |
S350 (3-1/2" Flange Structural Stud) Unpunched
33mils (20ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 48'-7" | 41'-6" | 36'-3" |
| 16 | 42'-1" e | 37'-8" | 32'-11" |
| 24 | 34'-4" e | 32'-11" e | 28'-9" e |
S350 (3-1/2" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
This section does not meet the requirements of AISI North American Specifications. Increase the thickness or contact ClarkDietrich Technical Services @ 888-437-3244 for design solutions.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 57'-9" | 45'-10" | 40'-1" |
| 16 | 52'-6" | 41'-8" | 36'-5" |
| 24 | 43'-0" | 36'-5" | 31'-10" |
S350 (3-1/2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 49'-5" | 43'-2" |
| 16 | 56'-7" | 44'-11" | 39'-2" |
| 24 | 49'-5" | 39'-2" | 34'-3" |
S350 (3-1/2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 53'-10" | 47'-1" |
| 16 | 60'-0" * | 48'-11" | 42'-9" |
| 24 | 53'-10" | 42'-9" | 37'-4" |
S350 (3-1/2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 52'-8" |
| 16 | 60'-0" * | 54'-10" | 47'-11" |
| 24 | 60'-0" * | 47'-11" | 41'-10" |
S350 (3-1/2" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 55'-11" |
| 16 | 60'-0" * | 58'-2" | 50'-10" |
| 24 | 60'-0" * | 50'-10" | 44'-5" |
S162 (1-5/8" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 52'-1" | 43'-6" | 38'-0" |
| 16 | 45'-1" | 39'-7" | 34'-7" |
| 24 | 36'-10" | 34'-7" | 30'-2" |
S162 (1-5/8" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 59'-0" | 46'-10" | 40'-11" |
| 16 | 53'-8" | 42'-7" | 37'-2" |
| 24 | 46'-10" | 37'-2" | 32'-6" |
S162 (1-5/8" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 50'-9" | 44'-4" |
| 16 | 58'-1" | 46'-1" | 40'-3" |
| 24 | 50'-9" | 40'-3" | 35'-2" |
S162 (1-5/8" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 56'-9" | 49'-7" |
| 16 | 60'-0" * | 51'-7" | 45'-1" |
| 24 | 56'-9" | 45'-1" | 39'-4" |
S200 (2" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 56'-2" | 45'-7" | 39'-9" |
| 16 | 48'-8" | 41'-5" | 36'-2" |
| 24 | 39'-9" | 36'-2" | 31'-7" |
S200 (2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 49'-1" | 42'-10" |
| 16 | 56'-2" | 44'-7" | 38'-11" |
| 24 | 49'-1" | 38'-11" | 34'-0" |
S200 (2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 53'-1" | 46'-4" |
| 16 | 60'-0" * | 48'-3" | 42'-1" |
| 24 | 53'-1" | 42'-1" | 36'-10" |
S200 (2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 59'-4" | 51'-10" |
| 16 | 60'-0" * | 53'-11" | 47'-1" |
| 24 | 59'-4" | 47'-1" | 41'-2" |
S250 (2-1/2" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 57'-8" | 48'-1" | 42'-0" |
| 16 | 50'-0" | 43'-8" | 38'-2" |
| 24 | 40'-10" | 38'-2" | 33'-4" |
S250 (2-1/2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 51'-7" | 45'-1" |
| 16 | 59'-1" | 46'-10" | 40'-11" |
| 24 | 51'-7" | 40'-11" | 35'-9" |
S250 (2-1/2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 55'-6" | 48'-6" |
| 16 | 60'-0" * | 50'-5" | 44'-1" |
| 24 | 55'-6" | 44'-1" | 38'-6" |
S250 (2-1/2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 54'-1" |
| 16 | 60'-0" * | 56'-3" | 49'-2" |
| 24 | 60'-0" * | 49'-2" | 42'-11" |
S162 (1-5/8" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 53'-11" | 46'-2" | 40'-4" |
| 16 | 46'-8" | 42'-0" | 36'-8" |
| 24 | 38'-2" | 36'-8" | 32'-0" |
S162 (1-5/8" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 49'-9" | 43'-6" |
| 16 | 56'-11" | 45'-2" | 39'-6" |
| 24 | 49'-9" | 39'-6" | 34'-6" |
S162 (1-5/8" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 53'-11" | 47'-2" |
| 16 | 60'-0" * | 49'-0" | 42'-10" |
| 24 | 53'-11" | 42'-10" | 37'-5" |
S162 (1-5/8" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 52'-11" |
| 16 | 60'-0" * | 55'-1" | 48'-1" |
| 24 | 60'-0" * | 48'-1" | 42'-0" |
S162 (1-5/8" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 56'-1" |
| 16 | 60'-0" * | 58'-4" | 50'-11" |
| 24 | 60'-0" * | 50'-11" | 44'-6" |
S200 (2" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 58'-4" | 48'-4" | 42'-2" |
| 16 | 50'-6" | 43'-11" | 38'-4" |
| 24 | 41'-3" | 38'-4" | 33'-6" |
S200 (2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 52'-1" | 45'-6" |
| 16 | 59'-7" | 47'-4" | 41'-4" |
| 24 | 52'-1" | 41'-4" | 36'-1" |
S200 (2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 56'-5" | 49'-3" |
| 16 | 60'-0" * | 51'-3" | 44'-9" |
| 24 | 56'-5" | 44'-9" | 39'-1" |
S200 (2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 55'-3" |
| 16 | 60'-0" * | 57'-6" | 50'-3" |
| 24 | 60'-0" * | 50'-3" | 43'-11" |
S200 (2" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 58'-8" |
| 16 | 60'-0" * | 60'-0" * | 53'-3" |
| 24 | 60'-0" * | 53'-3" | 46'-6" |
S250 (2-1/2" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 51'-2" | 44'-8" |
| 16 | 52'-0" | 46'-6" | 40'-7" |
| 24 | 42'-5" | 40'-7" | 35'-6" |
S250 (2-1/2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 54'-11" | 48'-0" |
| 16 | 60'-0" * | 49'-11" | 43'-7" |
| 24 | 54'-11" | 43'-7" | 38'-1" |
S250 (2-1/2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 59'-1" | 51'-8" |
| 16 | 60'-0" * | 53'-8" | 46'-11" |
| 24 | 59'-1" | 46'-11" | 41'-0" |
S250 (2-1/2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 57'-7" |
| 16 | 60'-0" * | 59'-10" | 52'-4" |
| 24 | 60'-0" * | 52'-4" | 45'-8" |
S250 (2-1/2" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 55'-6" |
| 24 | 60'-0" * | 55'-6" | 48'-6" |
S300 (3" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 52'-9" | 46'-1" |
| 16 | 52'-10" | 47'-11" | 41'-10" |
| 24 | 43'-2" | 41'-10" | 36'-7" |
S300 (3" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 56'-1" | 49'-0" |
| 16 | 60'-0" * | 50'-11" | 44'-6" |
| 24 | 56'-1" | 44'-6" | 38'-10" |
S300 (3" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 53'-1" |
| 16 | 60'-0" * | 55'-2" | 48'-3" |
| 24 | 60'-0" * | 48'-3" | 42'-1" |
S300 (3" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 59'-5" |
| 16 | 60'-0" * | 60'-0" * | 54'-0" |
| 24 | 60'-0" * | 54'-0" | 47'-2" |
S300 (3" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 57'-5" |
| 24 | 60'-0" * | 57'-5" | 50'-2" |
S350 (3-1/2" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 54'-8" | 47'-9" |
| 16 | 59'-3" | 49'-8" | 43'-5" |
| 24 | 48'-5" e | 43'-5" | 37'-11" |
S350 (3-1/2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 58'-11" | 51'-5" |
| 16 | 60'-0" * | 53'-6" | 46'-9" |
| 24 | 58'-11" | 46'-9" | 40'-10" |
S350 (3-1/2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 55'-11" |
| 16 | 60'-0" * | 58'-2" | 50'-10" |
| 24 | 60'-0" * | 50'-10" | 44'-5" |
S350 (3-1/2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 56'-11" |
| 24 | 60'-0" * | 56'-11" | 49'-9" |
S350 (3-1/2" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 52'-10" |
S162 (1-5/8" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 57'-1" | 51'-5" | 44'-11" |
| 16 | 49'-5" | 46'-9" | 40'-10" |
| 24 | 40'-4" | 40'-4" | 35'-8" |
S162 (1-5/8" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 55'-5" | 48'-5" |
| 16 | 60'-0" * | 50'-4" | 44'-0" |
| 24 | 54'-0" | 44'-0" | 38'-5" |
S162 (1-5/8" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 52'-7" |
| 16 | 60'-0" * | 54'-8" | 47'-9" |
| 24 | 60'-0" * | 47'-9" | 41'-9" |
S162 (1-5/8" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 59'-6" |
| 16 | 60'-0" * | 60'-0" * | 54'-1" |
| 24 | 60'-0" * | 54'-1" | 47'-3" |
S200 (2" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 53'-8" | 46'-11" |
| 16 | 53'-9" | 48'-10" | 42'-8" |
| 24 | 43'-11" e | 42'-8" | 37'-3" |
S200 (2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 57'-11" | 50'-7" |
| 16 | 60'-0" * | 52'-8" | 46'-0" |
| 24 | 57'-11" | 46'-0" | 40'-2" |
S200 (2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 54'-10" |
| 16 | 60'-0" * | 57'-1" | 49'-10" |
| 24 | 60'-0" * | 49'-10" | 43'-7" |
S200 (2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 56'-4" |
| 24 | 60'-0" * | 56'-4" | 49'-2" |
S250 (2-1/2" Flange Structural Stud) Unpunched
43mils (18ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 56'-0" | 48'-11" |
| 16 | 55'-7" | 50'-11" | 44'-5" |
| 24 | 45'-4" e | 44'-5" e | 38'-10" |
S250 (2-1/2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 52'-8" |
| 16 | 60'-0" * | 54'-10" | 47'-11" |
| 24 | 60'-0" * | 47'-11" | 41'-10" |
S250 (2-1/2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 57'-2" |
| 16 | 60'-0" * | 59'-6" | 51'-11" |
| 24 | 60'-0" * | 51'-11" | 45'-5" |
S250 (2-1/2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 58'-6" |
| 24 | 60'-0" * | 58'-6" | 51'-2" |
S162 (1-5/8" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 57'-3" | 50'-0" |
| 16 | 60'-0" * | 52'-0" | 45'-5" |
| 24 | 54'-11" | 45'-5" | 39'-8" |
S162 (1-5/8" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 54'-4" |
| 16 | 60'-0" * | 56'-7" | 49'-5" |
| 24 | 60'-0" * | 49'-5" | 43'-2" |
S162 (1-5/8" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 56'-0" |
| 24 | 60'-0" * | 56'-0" | 48'-11" |
S162 (1-5/8" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 59'-6" |
| 24 | 60'-0" * | 59'-6" | 52'-0" |
S200 (2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 59'-10" | 52'-3" |
| 16 | 60'-0" * | 54'-4" | 47'-6" |
| 24 | 59'-7" | 47'-6" | 41'-6" |
S200 (2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 56'-9" |
| 16 | 60'-0" * | 59'-0" | 51'-6" |
| 24 | 60'-0" * | 51'-6" | 45'-0" |
S200 (2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 58'-3" |
| 24 | 60'-0" * | 58'-3" | 50'-11" |
S200 (2" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 54'-2" |
S250 (2-1/2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 54'-5" |
| 16 | 60'-0" * | 56'-7" | 49'-5" |
| 24 | 60'-0" * | 49'-5" | 43'-2" |
S250 (2-1/2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 59'-1" |
| 16 | 60'-0" * | 60'-0" * | 53'-8" |
| 24 | 60'-0" * | 53'-8" | 46'-11" |
S250 (2-1/2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 52'-11" |
S250 (2-1/2" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 56'-3" |
S300 (3" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 56'-10" |
| 16 | 60'-0" * | 59'-2" | 51'-8" |
| 24 | 60'-0" * | 51'-8" | 45'-2" |
S300 (3" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 55'-10" |
| 24 | 60'-0" * | 55'-10" | 48'-9" |
S300 (3" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 54'-6" |
S300 (3" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 58'-0" |
S350 (3-1/2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 59'-6" |
| 16 | 60'-0" * | 60'-0" * | 54'-1" |
| 24 | 60'-0" * | 54'-1" | 47'-3" |
S350 (3-1/2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 58'-9" |
| 24 | 60'-0" * | 58'-9" | 51'-4" |
S350 (3-1/2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 57'-5" |
S350 (3-1/2" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 60'-0" * |
S162 (1-5/8" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 54'-9" |
| 16 | 60'-0" * | 56'-11" | 49'-9" |
| 24 | 57'-4" | 49'-9" | 43'-5" |
S162 (1-5/8" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 59'-7" |
| 16 | 60'-0" * | 60'-0" * | 54'-2" |
| 24 | 60'-0" * | 54'-2" | 47'-4" |
S162 (1-5/8" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 53'-9" |
S200 (2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 57'-2" |
| 16 | 60'-0" * | 59'-5" | 51'-11" |
| 24 | 60'-0" * | 51'-11" | 45'-4" |
S200 (2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 56'-5" |
| 24 | 60'-0" * | 56'-5" | 49'-3" |
S200 (2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 55'-11" |
S250 (2-1/2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 59'-6" |
| 16 | 60'-0" * | 60'-0" * | 54'-1" |
| 24 | 60'-0" * | 54'-1" | 47'-3" |
S250 (2-1/2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 58'-9" |
| 24 | 60'-0" * | 58'-9" | 51'-4" |
S250 (2-1/2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 58'-0" |
S162 (1-5/8" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 56'-3" |
| 16 | 60'-0" * | 58'-6" | 51'-1" |
| 24 | 58'-0" | 51'-1" | 44'-8" |
S162 (1-5/8" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 55'-9" |
| 24 | 60'-0" * | 55'-9" | 48'-8" |
S162 (1-5/8" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 55'-5" |
S162 (1-5/8" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 59'-4" |
S200 (2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 58'-9" |
| 16 | 60'-0" * | 60'-0" * | 53'-5" |
| 24 | 60'-0" * | 53'-5" | 46'-8" |
S200 (2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 58'-0" |
| 24 | 60'-0" * | 58'-0" | 50'-8" |
S200 (2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 57'-7" |
S200 (2" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 60'-0" * |
S250 (2-1/2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 55'-7" |
| 24 | 60'-0" * | 55'-7" | 48'-6" |
S250 (2-1/2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 52'-9" |
S250 (2-1/2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 59'-8" |
S250 (2-1/2" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 60'-0" * |
S300 (3" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 56'-4" |
| 24 | 60'-0" * | 56'-4" | 49'-2" |
S300 (3" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 54'-2" |
S300 (3" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 60'-0" * |
S300 (3" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 60'-0" * |
S350 (3-1/2" Flange Structural Stud) Unpunched
54mils (16ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 52'-7" |
S350 (3-1/2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 58'-0" |
S350 (3-1/2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 60'-0" * |
S350 (3-1/2" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 60'-0" * |
S162 (1-5/8" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 54'-0" |
S162 (1-5/8" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 60'-0" * |
S162 (1-5/8" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 60'-0" * |
S200 (2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 56'-2" |
S200 (2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 60'-0" * |
S200 (2" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 60'-0" * |
S250 (2-1/2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 58'-5" |
S250 (2-1/2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 60'-0" * |
S250 (2-1/2" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 60'-0" * |
S300 (3" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 59'-11" |
S300 (3" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 60'-0" * |
S300 (3" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 60'-0" * |
S350 (3-1/2" Flange Structural Stud) Unpunched
68mils (14ga)
Interior Walls w/ Structural Framing at 5psf
Web-depth to thickness ratio exceeds 200. Web Stiffeners are required at all support points and concentrated loads.
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 60'-0" * |
S350 (3-1/2" Flange Structural Stud) Unpunched
97mils (12ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 60'-0" * |
S350 (3-1/2" Flange Structural Stud) Unpunched
118mils (10ga)
Interior Walls w/ Structural Framing at 5psf
| Spacing | L/120 | L/240 | L/360 |
|---|---|---|---|
| 12 | 60'-0" * | 60'-0" * | 60'-0" * |
| 16 | 60'-0" * | 60'-0" * | 60'-0" * |
| 24 | 60'-0" * | 60'-0" * | 60'-0" * |
